Allybot
CLEANING ROBOT
5-12H
BATTERY LIFE
2-3H
CHARGING TIME
<65dB
OPERATING NOISE
Online evolution
The robot keeps upgrading in application to adapt to different scenarios

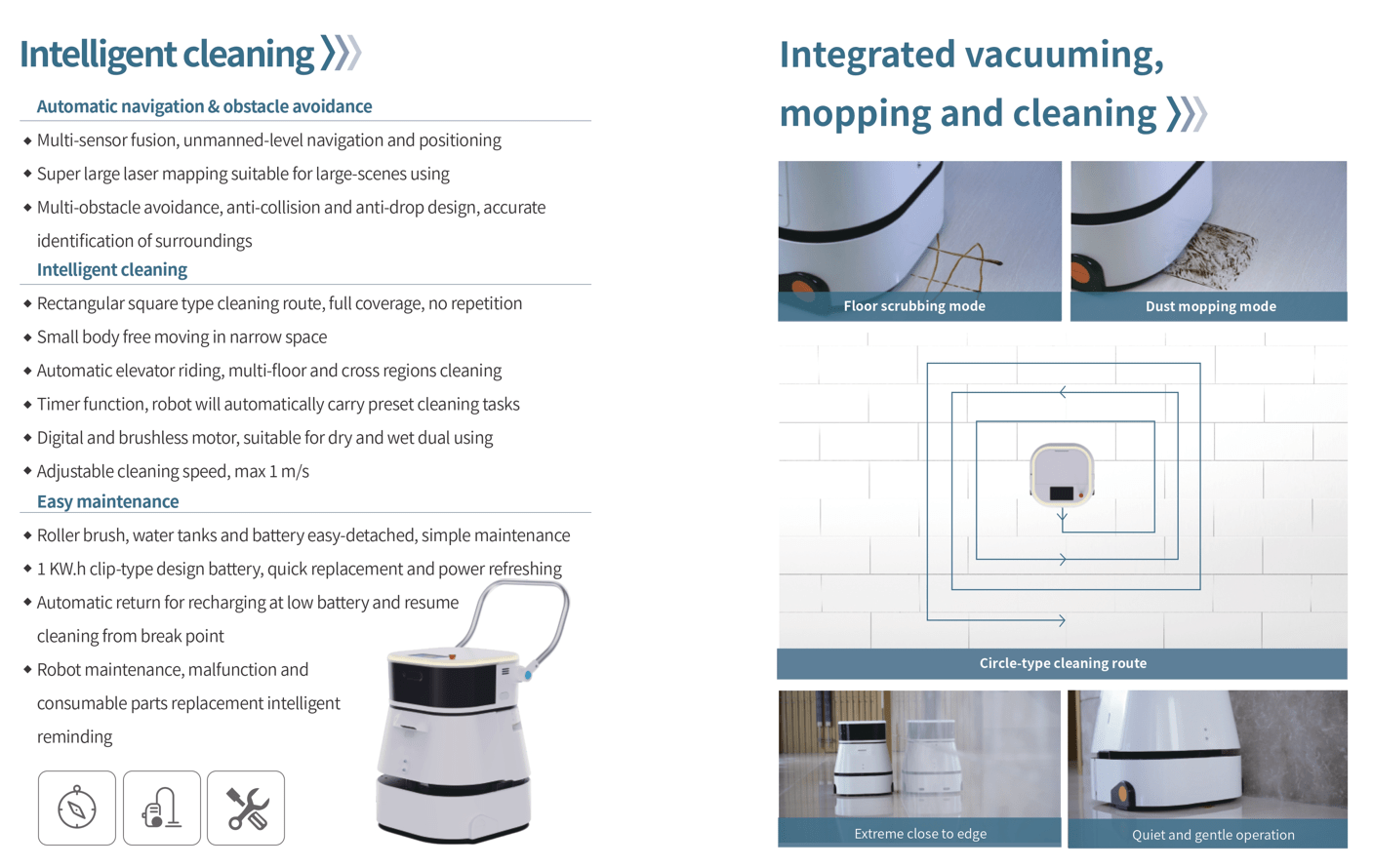

Smart Cleaning
An integration of scrubbing, mopping and vacuuming ; automatic recharging; self-cleaning; convenient water refilling and sewage discharging
Simplified maintenance
Simple Roller brush, water tank, sewage tank quick detachment, cleaning and maintenance; replaceable battery, extremely fast power recharging
Multi-modes interaction
Remote control + APP + Web-end software, multi ends operation ; Rapid deployment and easy to use.

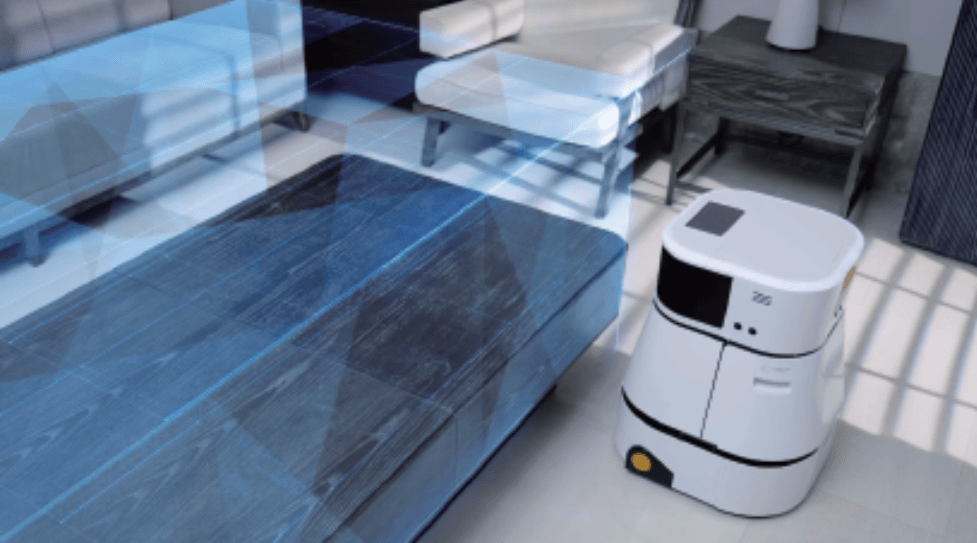

Accurate obstacle automatic recognition and avoidance
2D single line laser + structured light camera + ultrasound, multi anti-collision and anti-dropping designs ensure robot accurate identification of surroundings and reliable and safe operation
Autonomous Return Charge
Low battery auto return to charging pile, after fully charged, the robot will back to where it stopped and resumed cleaning. No human intervention, non-repeated, highly increase the cleaning efficiency and quality.

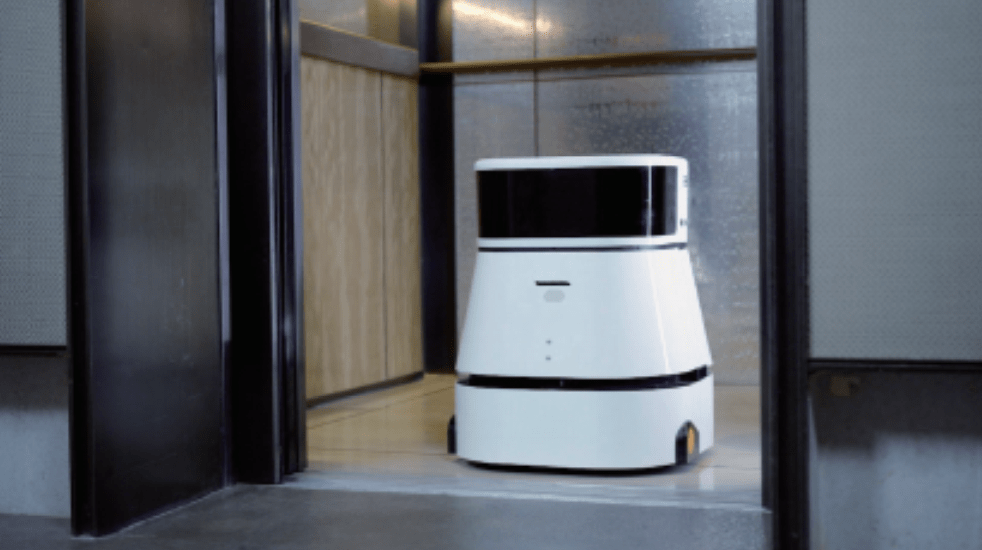

Automatic elevator riding, full floor cleaning
Installed an elevator system, the robot can automatically take elevator, achieving multi-floors, cross area cleaning.

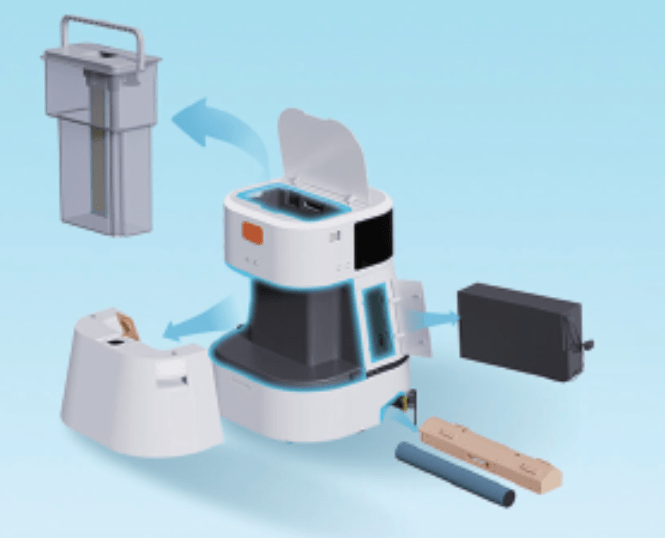

Modular design
Forward pull-type clean water tank, quick clean water refilling; Sewage water tank inside the top cover, easy pullout to discharge sewage water and garbage; Clip-type battery design, simple replacement when out of power; Drawer type cleaning module, easy cleaning and maintenance
Allybot
CLEANING ROBOT
The cleaning robot integrates scrubbing, vacuuming and mopping functions. It enables self-recharging and self-cleaning, and has been widely employed in hospitals, shopping malls, schools, exhibition halls, office buildings, terminal buidings and other scenarios.
| PARAMETER | SPECIFICATION |
| Size | 503mm * 503mm * 629mm |
| Weight | 40kg |
| Sensor Configuration | 2D obstacle avoiding radar, ultrasonic, anti-drop/HD camera |
| Navigation System | 2D multi-line laser + IMU + milometer + Multi-sensor fusion navigation |
| Obstacle Avoiding System | 2D single line laser + structured light camera + ultrasound |
| Speed | 0-1.1m/s, common 0.8m/s |
| Clean water/sewage capacity | 10L/10L |
| Cleaning width | 440mm |
| Downward pressure of the rolling brush | 20~40N |
| Cleaning efficiency | Scrubbing: 2500㎡/ Vacuuming: 2500㎡ / Mopping: 6000㎡ |
| Single operation area | 1200㎡/h |
| Battery | Lithium iron phosphate, 36Ah 24V |
| Duration | 5~12h |
| Charging time | 2-3h |
| Network communication | 4G/5G/wifi |
| Operating noise | <65db |
